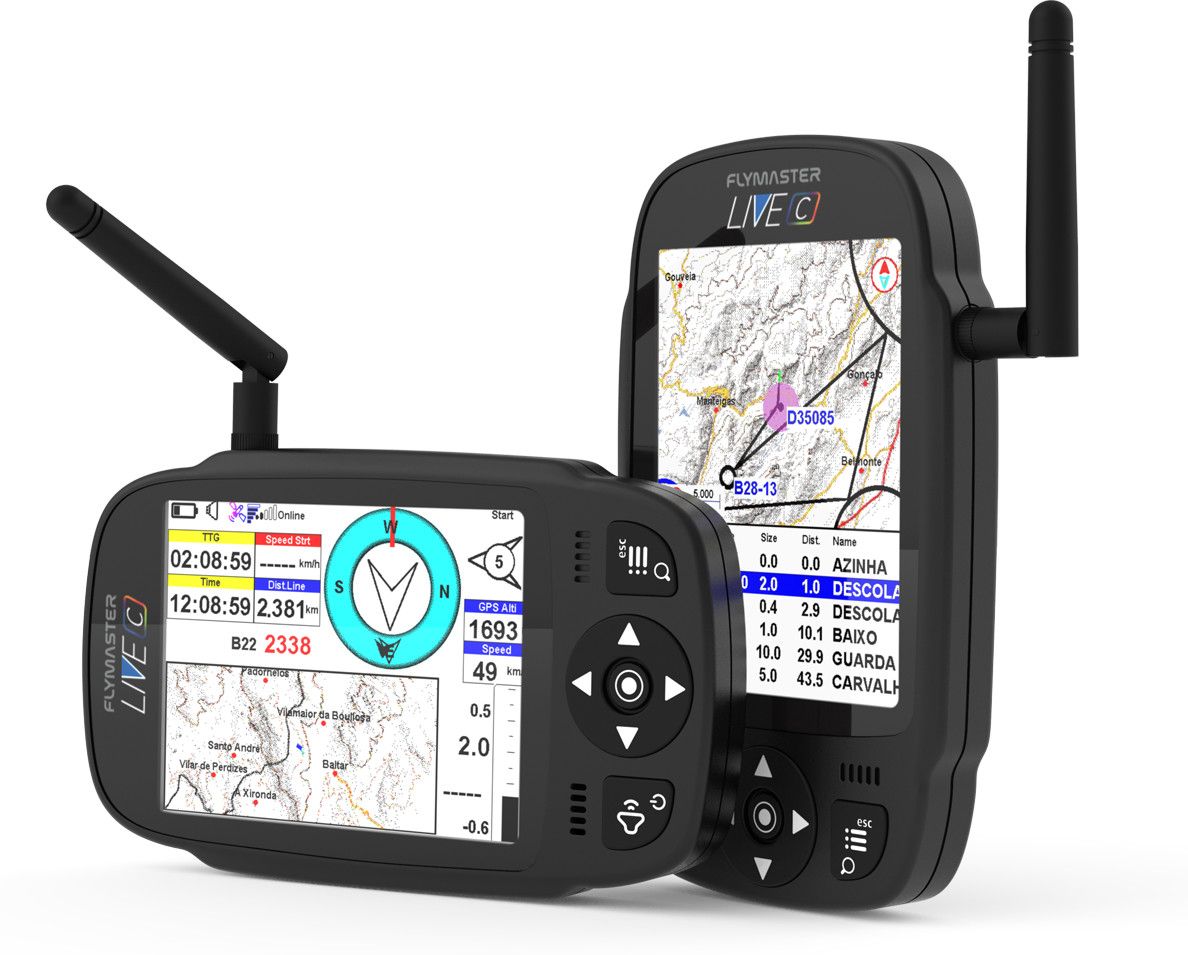

Flymaster Live C With Flarm
Product Details
YOUR COMPETITION VARIO
Unleash the power of the LIVE C, where the might and alluring features of the LIVE DS come together in a sleek and compact single-display package. Experience the ultimate fusion of performance, portability, and the unrivaled prowess of LiveTracking technology, proven to be the world’s best. Redefine your navigation experience with unparalleled simplicity, versatility, and the assurance of real-time tracking like never before.
LIVE C FEATURES
- 72 channel U-blox BeiDou, Galileo, GLONASS, GPs/QZSS
- Ultra-sensitive VARIO
- Built-in Flarm Beacon
- Global multi-band LTE-M
- Type C USB mass storage
- Flymaster Instrument Manager Software
- Optional FLARM obstacle database
- In-instrument flight playback
- Improved datafields
- New User Interface
- Cut side view
- New enhanced Live tracking
- In flight leaderboard with leading points calculation
- Flarm aware radar
- Highly visible under direct sunlight
- Altitude limits in task definition
- Mass storage USB
- Fully customizable layouts
- In-flght voice assistance
- U-Blox bluetooth low energy
- Extra-large fonts
- Optional bumper case
- Data transfer over BLE to other apps
- Latest gen microprocessor
- Anti-theft system
- High-resistance protective lens
- Glove friendly keys and UI
- Extended battery life
- Compatible with Flymaster's Andriod and IOS app
- High-resistance protective lens
MAIN HARDWARE CHARACTERSTICS
| Display Type | Reflective colour 640x480px |
| Battery Capacity (Lithium-Ion) | 6000mAh |
| Autonomy | approx 24 hours |
| Size | 152x90x18 mm (Length x Width x Thickness) |
| Weight | /220g |
| GPS | 72 channel/4Hz |
| Native USB-C Connection | Allows connection to the PC to download/upload Flight Data, Airspaces Data, etc |
| Battery Charging | From wall adapter, car adapter or standard usb port |
| MicroSD slot | Supports cards to 256 GB |
| GSM | Global Multi-band LTE-M/td> |
| Bluetooth | Bluetooth 5 low energy module |
| Firmware update by USB (upgrades are free) | |
| 6 Axis accelerometer and magnetometer | Allows 6-degrees of freedom Tilt-compensated Compass) |
INTERFACE FEATURES
Configurable data field elements (User can change size, border, title, Font, …)61Page Trigger Events (page switches automatically if a specific event occurs)
- Airspace warning
- Entering thermal
- Transition (leaving thermal)
- Arriving at turnpoint
- Power up
| User definable pages, 8 in portrait and 8 in landscape mode (each page can be draw using FIM software). | 8 |
| Configurable graphical elements (depending of the element several parameters can be set by the user ex. Size, Border, …) | 15 |
| Configurable data field elements (User can change size, border, title, Font, Color, …) | 85 |
| Multi lingual interface |
|
| Configurable voice alerts |
|
VARIOMETER/ALTIMETER FEATURES
| Buzzer/near thermal sound. |
| Ultra sensitive Variometer with 10 readings per second and 10 cm resolution. |
| Configurable vario digital filter and integration values. |
| Fully configurable Vario Sound (frequency, increments, frequency/vertical speed relation,….). |
| 6 Sound Levels (configurable by menu, or using a key). |
| Automatic mute, keeps vario silent until takeoff. |
| Altitude adjustment using QNH. |
| 2 independent altimeters. |
MEMORY FEATURES
| 3D flight logger IGC format. |
| Storage for >300000 track points. |
| Up to 248 flights. |
| 448 Waypoints. |
3D AIRSPACE
| Compatibility with Open Air format (upload of files using Designer). |
| Display of restricted areas in map |
| Adjustable warning vertical distance to a restricted area |
| Display of shortest Vertical, and Horizontal, distance to restricted area |
| Resctrited area alarms (Altitude imminent, Position imminent, Violation, …) |
| Critical Airspace page (displays information about areas that are closer than a defined distance) |
| Worldwide Airspace database (SD card required) |
CROSS COUNTRY FEATURES
| Exclusive Thermal Ball indicator |
| Several specific data fields like Distance to take off, current and average glide ratio, average speed, etc. |
| Distance to last thermal indexed with altitude |
| Goto waypoint |
| Multiple waypoint route |
| Wind Speed and Direction (GPS based calculations) |
| Automatic altitude gain profiler |
| Nearby Landings (Displays Required Glide Ratio and distance to all the Landings which can be reached) |
ROUTE FEATURES
| Several Glides Ratios (average, to next,…) |
| Easy route definition |
| Route Navigation, configurable safety/risk margin on turn points. |
| Route Map (trace with thermal indication) |
| Multiple waypoint route |
