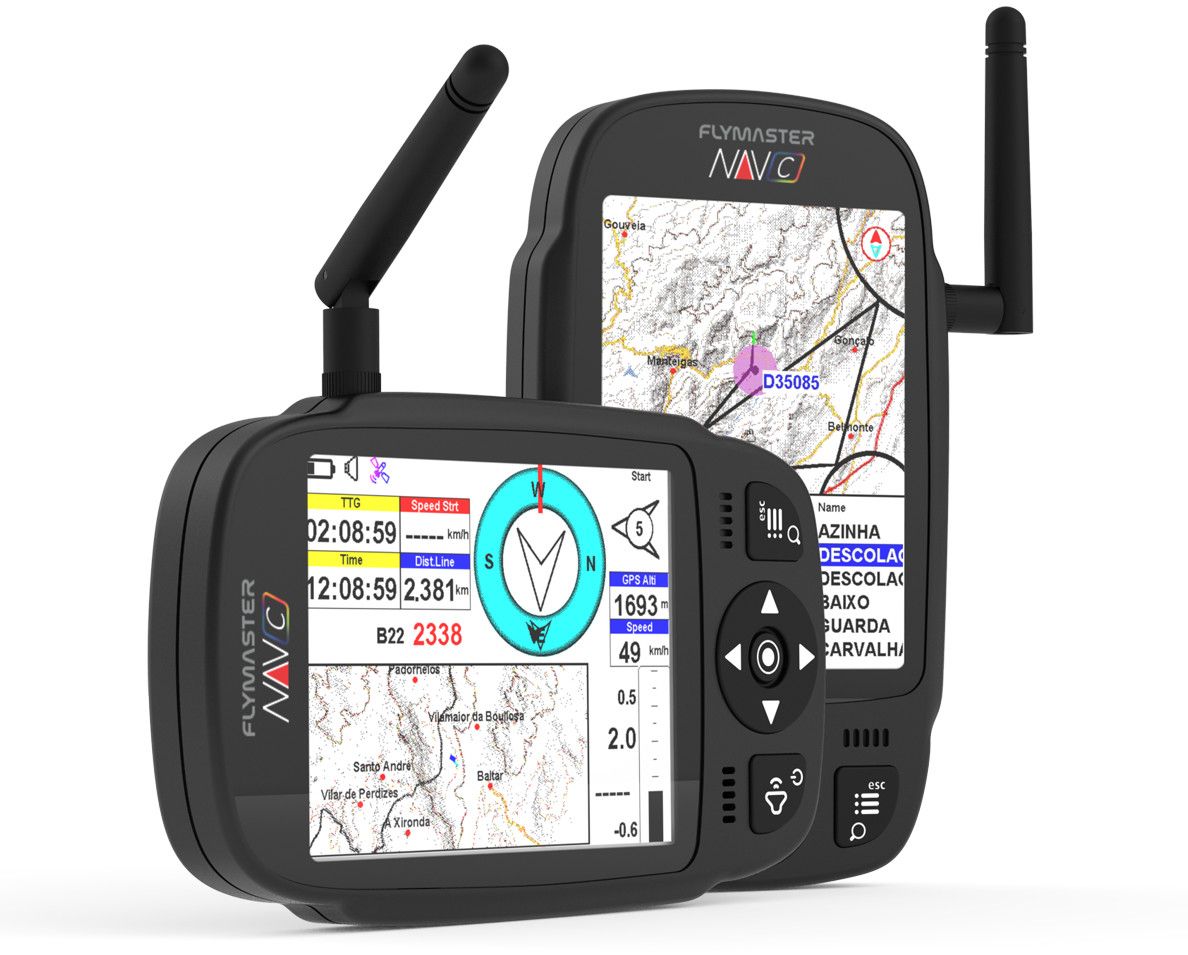

Flymaster Nav C With Flarm
Product Details
Introducing the NAV C: where the DNA of the NAV SD meets the spirit of the LIVE DS, resulting in a lightweight and versatile single-display marvel. It’s the ultimate fusion, offering the best of both worlds without compromising on performance. Embrace a new era of navigation excellence with the NAV C.
NAV C FEATURES
- 72 channel U-blox BeiDou, Galileo, GLONASS, GPs/QZSS
- Ultra-sensitive VARIO
- Built-in Flarm Beacon
- Landscape mode
- Type C USB mass storage
- Flymaster Instrument Manager Software
- Optional FLARM obstacle database
- In-instrument flight playback
- New datafields
- New User Interface
- Side cut view
- Flarm aware radar
- Mass storage USB
- Fully customizable layouts
- Highly visible under direct sunlight
- Altitude limits in task definition
- In-flght voice assistance
- Extra-large fonts
- Optional bumper case
- Magnetometer
- Latest gen microprocessor
- Anti-theft system
- High-resistance protective lens
- Glove friendly keys and UI
- Big battery life
- Altitude limits in task definition
- Compatible with Flymaster's Andriod and IOS app
- USB-C to USB-C connection
- Data transfer over BLE to other apps
MAIN HARDWARE CHARACTERSTICS
Display TypeSegmented LCD
| Display Type | Reflective colour 640x480px |
| Battery Capacity (Lithium-Ion) | 6000mAh |
| Autonomy | approx 27 hours |
| Size | 152x90x18 mm (Length x Width x Thickness) |
| Weight | /200g |
| GPS | 72 channel/4Hz |
| Native USB-C Connection | Allows connection to the PC to download/upload Flight Data, Airspaces Data, etc |
| Battery Charging | From wall adapter, car adapter or standard usb port |
| Bluetooth | Bluetooth 5 low energy module |
| MicroSD slot | Supports cards to 256 GB |
| Firmware update by USB (upgrades are free) | |
| 6 Axis accelerometer and magnetometer | Allows 6-degrees of freedom Tilt-compensated Compass) |
INTERFACE FEATURES
Configurable data field elements (User can change size, border, title, Font, …)85Page Trigger Events (page switches automatically if a specific event occurs)
- Airspace warning
- Entering thermal
- Transition (leaving thermal)
- Arriving at turnpoint
- Start Open
- Power up
| User definable pages, 8 in portrait and 8 in landscape mode (each page can be drawn using FIM software). | 16 |
| Configurable graphical elements (depending of the element several parameters can be set by the user ex. Size, Border, …) | 15 |
| Multi lingual interface |
|
| Configurable audible alerts |
|
VARIOMETER/ALTIMETER FEATURES
| Buzzer/near thermal sound. |
| Ultra sensitive Variometer with 10 readings per second and 10 cm resolution. |
| Configurable vario digital filter and integration values. |
| Fully configurable Vario Sound (frequency, increments, frequency/vertical speed relation,….). |
| adjustable Sound Levels (configurable by menu, or using a key). |
| Automatic mute, keeps vario silent until takeoff. |
| Altitude adjustment using QNH. |
| 2 independent altimeters. |
MEMORY FEATURES
| 3D flight logger IGC format. |
| Storage for >300000 track points. |
| Up to 248 flights. |
| 448 Waypoints. |
3D AIRSPACE
| Compatibility with Open Air format (upload of files using Designer). |
| Display of restricted areas in map |
| Adjustable warning vertical distance to a restricted area |
| Display of shortest Vertical, and Horizontal, distance to restricted area |
| Resctrited area alarms (Altitude imminent, Position imminent, Violation, …) |
| Critical Airspace page (displays information about areas that are closer than a defined distance) |
| Worldwide Airspace database (SD card required) |
CROSS COUNTRY FEATURES
| Exclusive Thermal Ball indicator |
| Several specific data fields like Distance to take off, current and average glide ratio, average speed, etc. |
| Distance to last thermal indexed with altitude |
| Goto waypoint |
| Multiple waypoint route |
| Wind Speed and Direction (GPS based calculations) |
| Automatic altitude gain profiler |
| Nearby Landings (Displays Required Glide Ratio and distance to all the Landings which can be reached) |
ROUTE FEATURES
| Several Glides Ratios (average, to next,…) |
| Easy route definition |
| Route Navigation, configurable safety/risk margin on turn points. |
| Route Map (trace with thermal indication) |
| Multiple waypoint route |
